PSF Library

The following three files have been generated by AnisoCADO for use with SimCADO.

Warning

These files are ~1 GB in size.

Profile Seeing Zenith Distance Wind Speed Turbulence Profile File Link

Good 0.4 0 8.8 ESO Quartile 1 AnisoCADO_Q1
Median 0.67 30 10 ESO Median AnisoCADO_Median
Bad 1.0 60 13 ESO Quartile 4 AnisoCADO_Q4

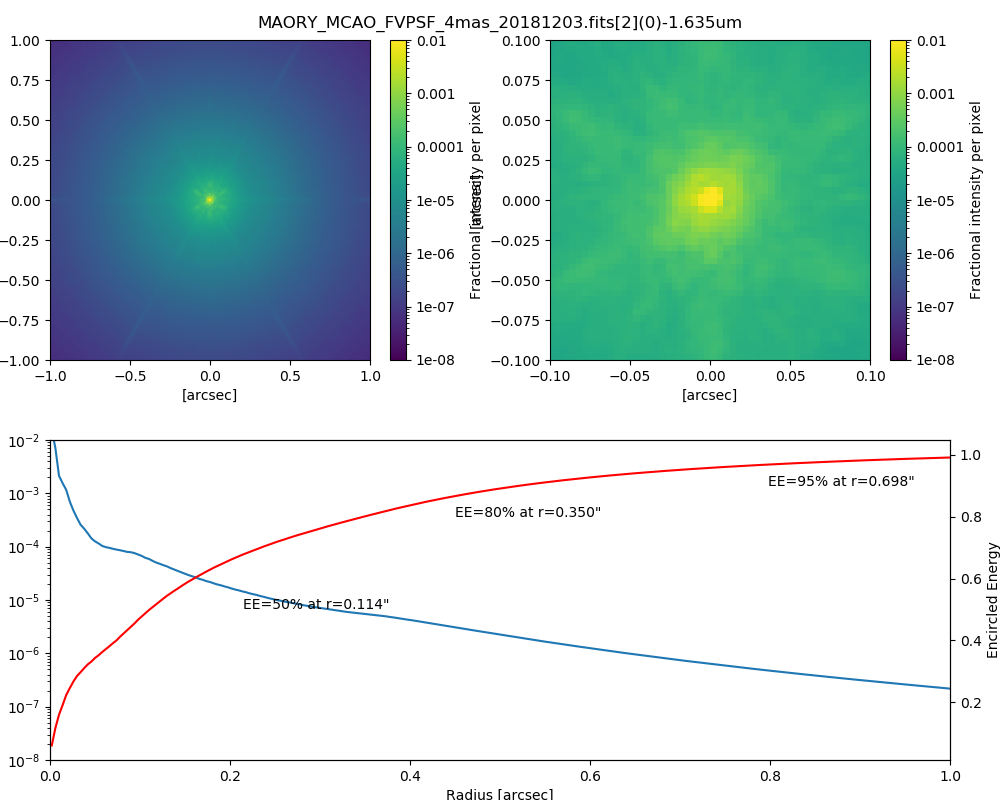

PSF radial profiles and images

Below are links to a summary image of each PSF and wavelength held in the SimCADO PSF database. Please contact the SimCADO team if you would like access to the files which are not listed above.
